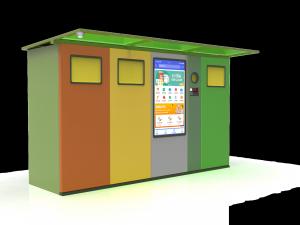

Large Size Stadium 4in1 Combo Waste vending machine Recycle PET Bottle/ Metal Can / glass bottle/ Paper/ Battery
Brief Introduction :
RVM-2108 Smart Reverse Vending Machine (RVM) is aim at the market of non-deposit. 4in1 integrated solution, accept different container such as plastic bottle, aluminum can, glass bottle, paper, battery. Equipped the compactor module to enlarge the storage capacity of plastic bottle and can. soft drop protect systems for glass bottle. Large storage capacity up to 1000pcs plastic bottle, 800pcs metal can, 150pcs glass bottle, 10kgs paper.
RVM-2108 RVM suitable for Stadium, Residential Area, Resort, Public Plaza, park, school, beach, tourism area, street, bus station, train station,Resort ,Industrial park, Company etc, green technology design, powered by AC power and solar energy.
compatible with various reward option such as coupon, digital deposit, redeem gift, equipped the printing module suitable for print coupon,receipt and other voucher.
classic design, ideal for wrapping advertisement and customized branding by poster or lightbox .
Parameters:
| Model# | RVM-2108 | Description: | 4in1 RVM |
| Size (mm) | 1950H*3350L*850D | Container | Plastic bottle, metal can,
glass bottle, paper |
| Compactor | yes | Sorted | yes |
| Special
features
| 1. UV sterilization
2. RVM with 4 protections
3. Over flow alarms
4. Abnormal alarms
5. CCTV camera | Storage capacity: | 1000pcs plastic bottle
800pcs metal cans
200pcs glass bottle
10kgs paper |
| Voltage/ Frequency | AC110V, 230v, 50/60HZ
0.5A /10A | Output: | Max: 350W
Idle status: 150w |
| recognition system | Bar code matching
Configuration scanner
Weight sensor | Reward | Coupon
Donation |
| Operated | APP, QR code | Touch screen | 21.5” |
| Process speed | 40pcs | Working Temp
Humidity
Noise | -10℃ to +45℃
<95%,
<60db |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software | a. Standard in English
b. Customized
c. Manual operate | Remote control software | a. Standard
b. Customized
c. Standalone |
| G.W: | 560KGS | Power supply | Solar panel 70W
Lithium battery 50A |
Quick Detail:
1. user screen: 21.5"
2. powered by AC power and solar energy, outdoor use,
3. Manual or QR code operate
4. Container: plastic PET bottle, metal can, glass bottle, battery , paper
5. with compactor, soft drop system
6. sorte storage
7. Productivity: 20 pcs per min
8. Storage Capacity up to 1000pcs plastic bottle, 800pcs metal cans, 200pcs glass bottle, 10kgs paper
9. Reward systems: Digital Deposit, Coupon, Redeem gift
10. Automation: Barcode, material and weight sensors
11. Container size:150ml - Max.2.5litres
12. Over flow alarms
13. anti-clamping hand protection (door)
14. Non-conforming image identification Reject
15. No-conforming weight identification Reject.
16. 4 protections-OVP,SCP, RVP, RCD
17. Support software integarted
